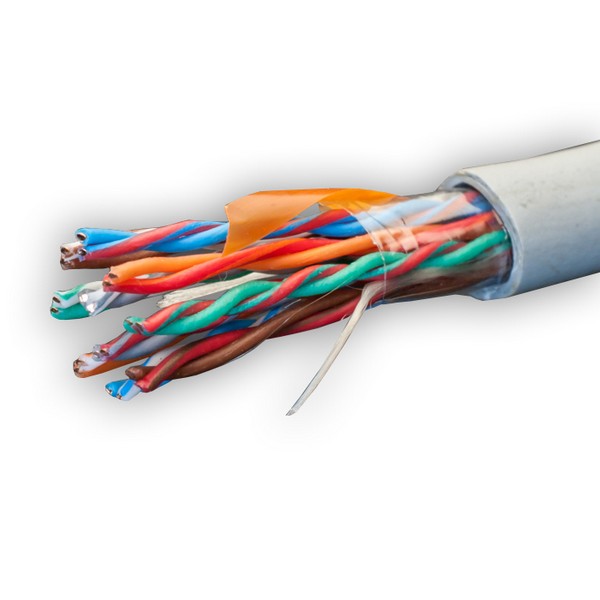

SUPRLAN UTP 5e 10x2xAWG24 Cu PVC In. 305m

Description

Article: 01-0409

Multipair cables are used in broadband access networks for sending a signal to the floor and then prividing it to subscribers with a traditional 4-pair horizontal cable. In the construction of office information systems, multipair constructions can be used in open offices for connecting the patch panel of a technical room with a consolidation point or a multi-user information socket.

A multipair copper LAN cable is currently one of the main components of the broadband access cable network for mass connection of subscribers.

It allows to solve the spectrum of tasks from construction of various high- and medium-speed computer networks, it is applied in IP telephony and IPTV projects, broadband access lines in InternetxDSL, video surveillance systems (including PoE+).

Stable high quality of data transmission through all available channels is guaranteed.

UTP 10Pr Indoor cable is produced by SUPR company under its own brand SUPRLAN.

Characteristics

Category:
SUPRLAN cable class:
Standard
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,48
Conductive core cross section, mm2:
0,18
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
10
Number of conductive cores:
20
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductor type:
Solid
Screening:
UTP (U/UTP)
Pair screen material:
None
Collective screen material:
None
Allowable tensile load, kN:
0,1
Sheath material:
PVC
Laying method:
Indoor
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -40 to +60
Package:
Bundle 305m

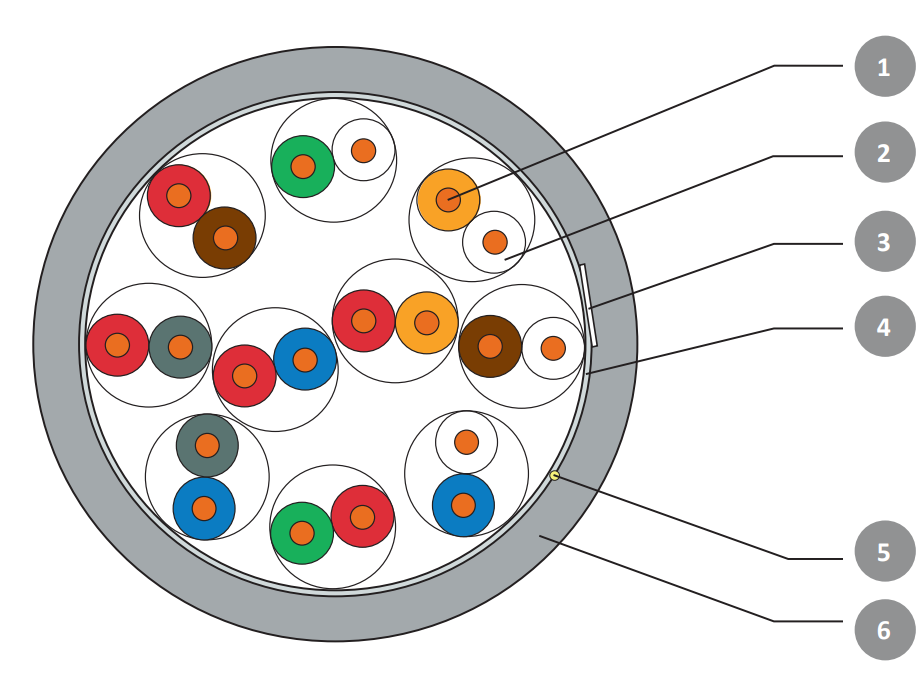

Construction

  1. Conductive core: copper soft (Grade A) wire
  2. Insulationpolyethylene
  3. Identification tape
  4. Binding polymer tape
  5. Ripcord: aramid yarn
  6. External sheath: PVC
    Sheath colour: gray.
