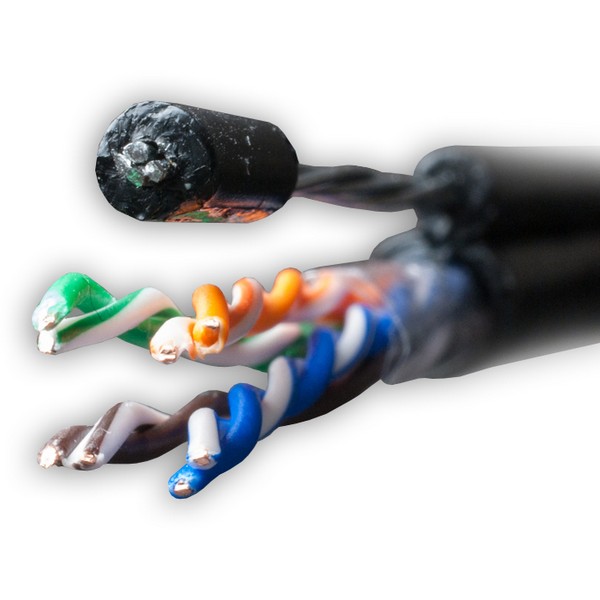

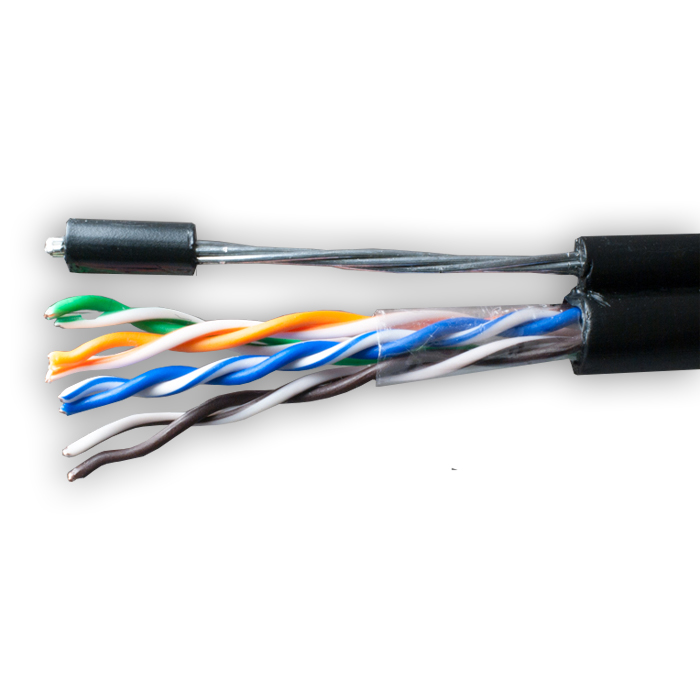

SUPRLAN Standard FTP 5e cable, 4x2xAWG24 Cu PE Out. T-FG8 (overhead) 305m
Description
Article: 01-1026
SUPRLAN Standard - LAN cable of mass application, optimized by the ratio of «price-parameters». It is aimed at laying in various office and home networks, allowing to solve the vast majority of tasks in its class. Meets the requirements of GOST R 54429-2011 standard in broadband access networks.
This cable is intended for laying along the external facades of buildings.
Characteristics
ETIM category:
EC000830
ETIM caregory name:
Data cable
Category:
5е
SUPRLAN cable class:
Standard
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,48
Conductive core cross section, mm2:
0,18
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
FTP (F/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coating area
Allowable tensile load, kN:
1,2
External cable diameter, mm:
5,7
Sheath material:
Polyethylene (PE)
Sheath material:
Black
Laying method:
Outdoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -50 to +60
Package:
Bundle 305m

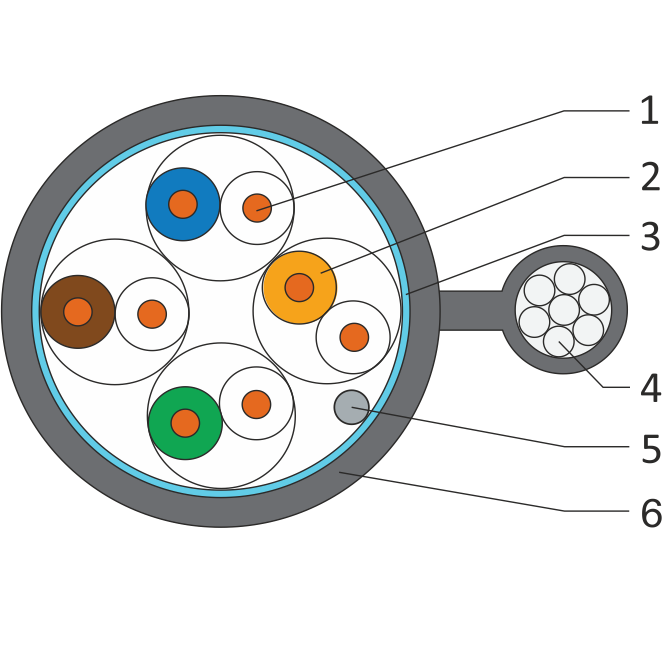

Construction
- Conductive core: soft (Grade A) copper wire
- Insulation: polyethylene
core: pairs, twisted together - core screen: polymer coated aluminium tape (metal inside)
- Strength member: steel strand, 1,5 mm diameter (or other by request)
- Tinned copper contact wire with 0,4 mm diameter
- External sheath: light-stabilized polyethylene, sheath colour - black
