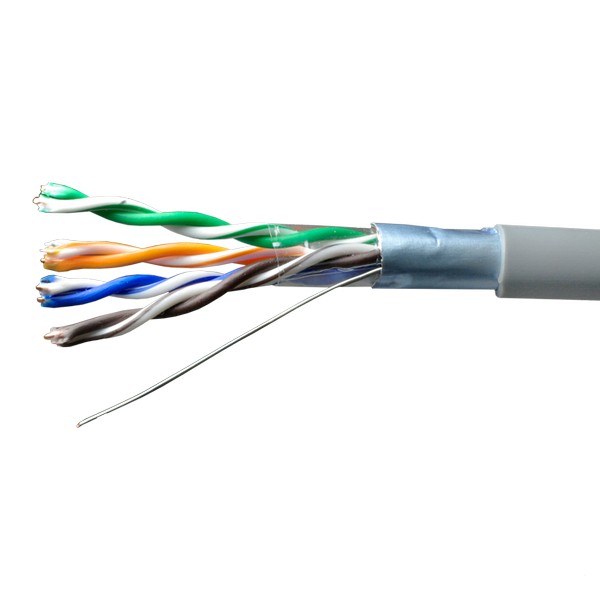

SUPRLAN Standard FTP 5e 4x2xAWG24 Cu LSZH нг(А)-HF In. 305m
Description
Article: 01-1023
SUPRLAN Standard - LAN cable of mass application, optimized by the ratio of «price-parameters». It is aimed at laying in various office and home networks, allowing to solve the vast majority of tasks in its class. Meets the requirements of GOST R 54429-2011 standard in broadband access networks.
This cable is intended for laying inside buildings.
Cables нг(А)-HF (halogen free) are manufactured under «GOST 31565-2012 Fire safety requirements», fully compliant with IEC 60331, IEC 60332, IEC 60754, IEC 61034, which makes it possible to use them in buildings and constructions with mass presence of people, including multifunctional high-rise buildings and business centers.
Characteristics
ETIM category:
EC000830
ETIM caregory name:
Data cable
Manufacturer:
Odeskabel
Category:
5е
SUPRLAN cable class:
Standard
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,48
Conductive core cross section, mm2:
0,18
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
FTP (F/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coating area
Allowable tensile load, kN:
0,1
External cable diameter, mm:
5,5
Sheath material:
нг(А)-HF (halogen free)
Sheath material:
Gray
Laying method:
Indoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568, GOST 54429-2011, GOST 31565-2012, IEC 60331, IEC 60332, IEC 60754, IEC 61034
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -20 to +60

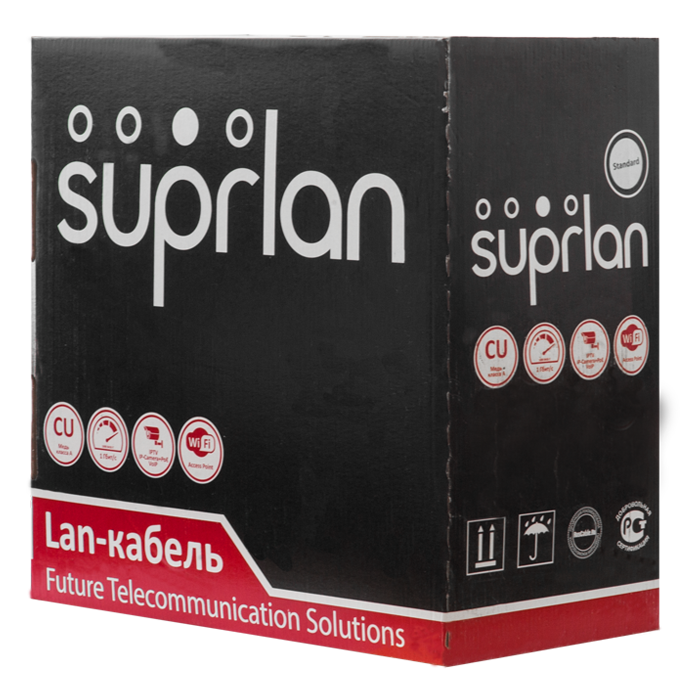

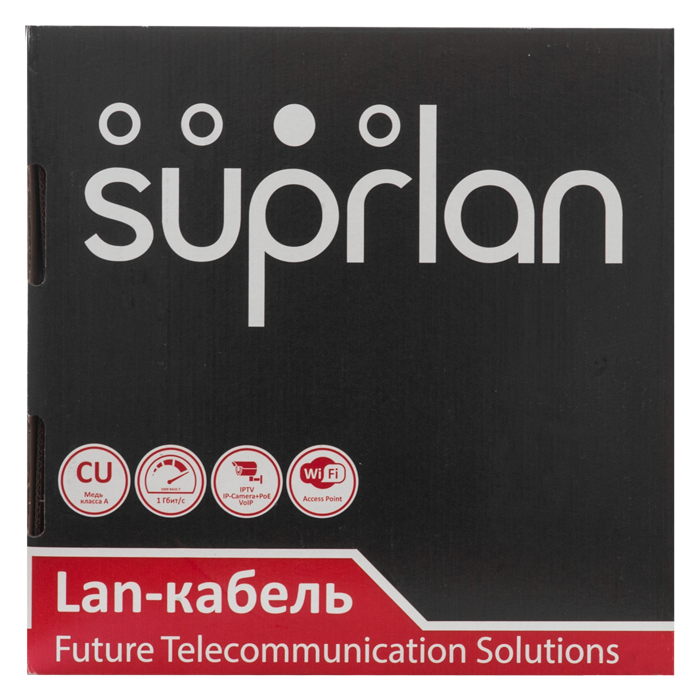

Package:
Box 305m
