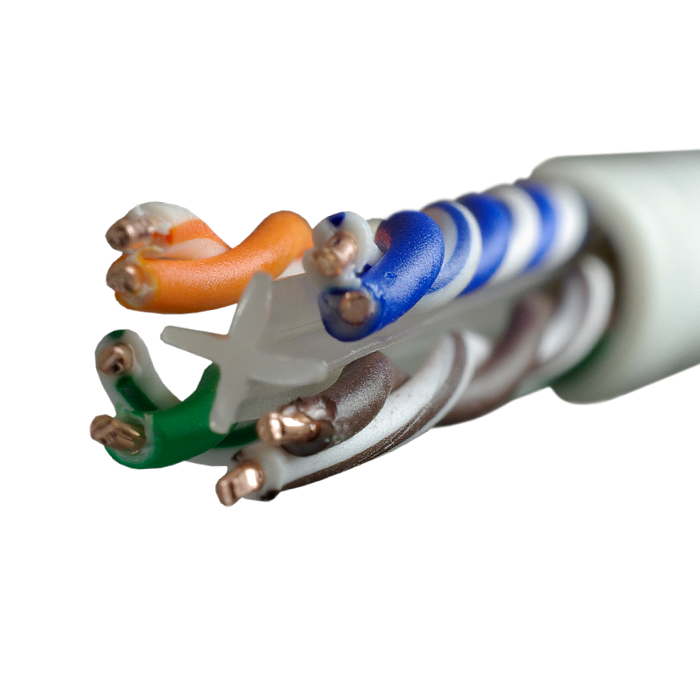

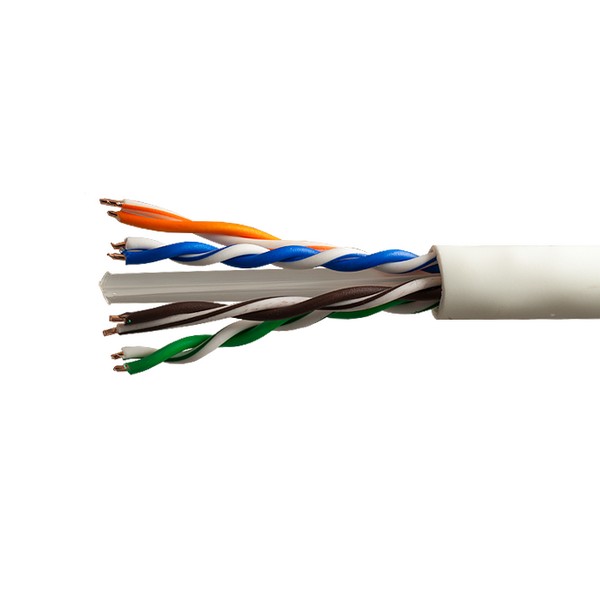

SUPRLAN Six UTP 6 4x2xAWG23 Cu LSZH нг(А)-HF In. 305m
Description
Article: 01-1030
Category 6 LAN cable is used in large information system construction projects in case of special requirements for protection against interferences and/or for providing long-distance communication. External laying in cablee ducts, in collectors, shafts, along the external facades of buildings. Operated at frequencies up to 250 MHz.
Cables нг(А)-HF (halogen free) are manufactured under «GOST 31565-2012 Fire safety requirements», fully compliant with IEC 60331, IEC 60332, IEC 60754, IEC 61034, which makes it possible to use them in buildings and constructions with mass presence of people, including multifunctional high-rise buildings and business centers.
Characteristics
ETIM category:
EC000830
ETIM caregory name:
Data cable
Manufacturer:
Odeskabel
Category:
6
SUPRLAN cable class:
Six
Bandwidth, MHz:
250
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,54
Conductive core cross section, mm2:
0,23
Conductive core insulation material:
High density polyethylene (HDPE)

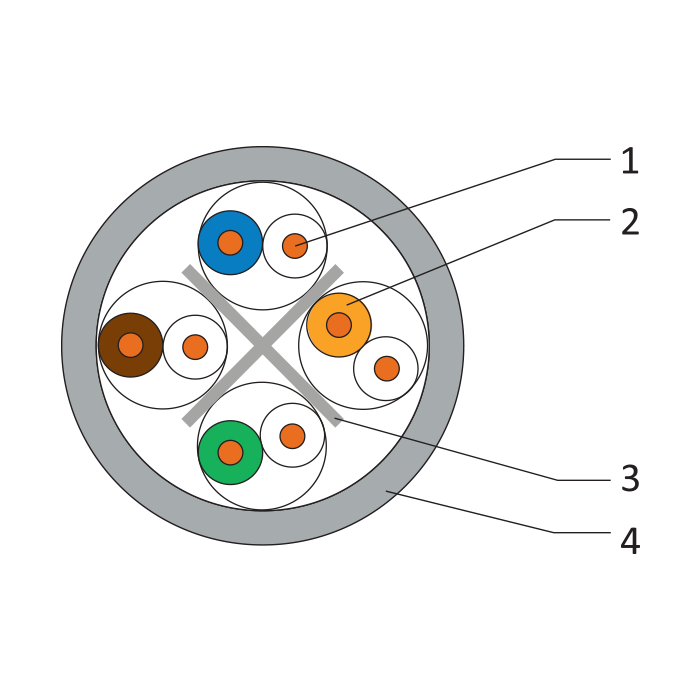

Number of pairs:
4
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
UTP (U/UTP)
Pair screen material:
None
Collective screen material:
None
Allowable tensile load, kN:
0,1
External cable diameter, mm:
6,9
Sheath material:
нг(А)-HF (halogen free)
Sheath material:
Gray
Laying method:
Indoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568, GOST 54429-2011, GOST 31565-2012, IEC 60331, IEC 60332, IEC 60754, IEC 61034
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 10GBASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -20 to +60
Package:
Box 305m
