SUPRLAN Six FTP 6 4x2xAWG23 Cu PE Out. 305m
Description
Article: 01-1018
Category 6 LAN cable is used in large information system construction projects in case of special requirements for protection against interferences and/or for providing long-distance communication. External laying in cablee ducts, in collectors, shafts, along the external facades of buildings. Operated at frequencies up to 250 MHz.
Fully compliant with ISO/IEC 11801, EN 50173, TIA/EIA568 and GOST R 54429-2011.
Characteristics
ETIM category:
EC000830
ETIM caregory name:
Data cable
Category:
6
SUPRLAN cable class:
Six
Bandwidth, MHz:
250
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,54
Conductive core cross section, mm2:
0,23
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
FTP (F/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coating area
Allowable tensile load, kN:
0,1
External cable diameter, mm:
7
Sheath material:
Polyethylene (PE)
Sheath material:
Black
Laying method:
Outdoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 10GBASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -50 to +60

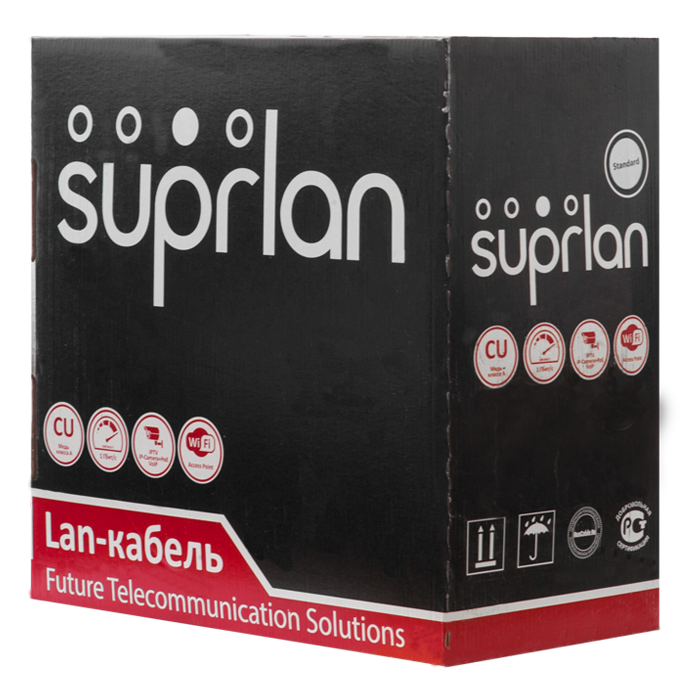

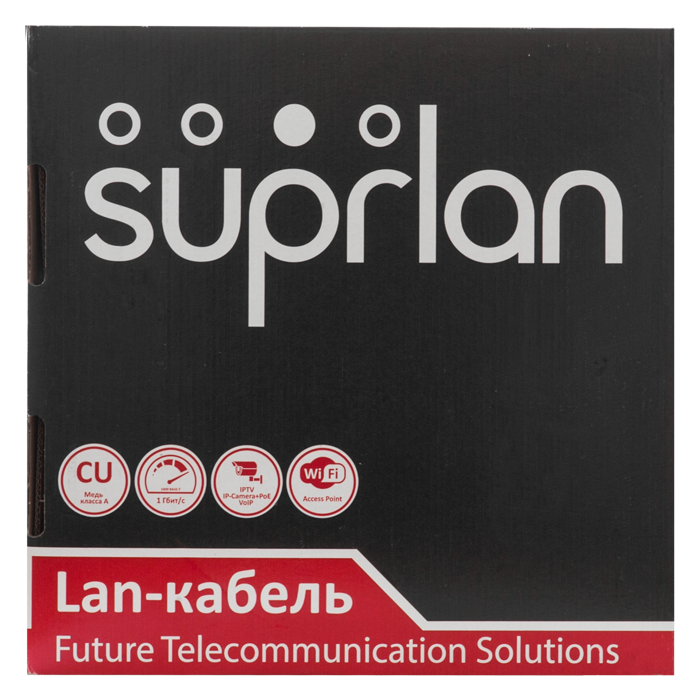

Package:
Reel 305m

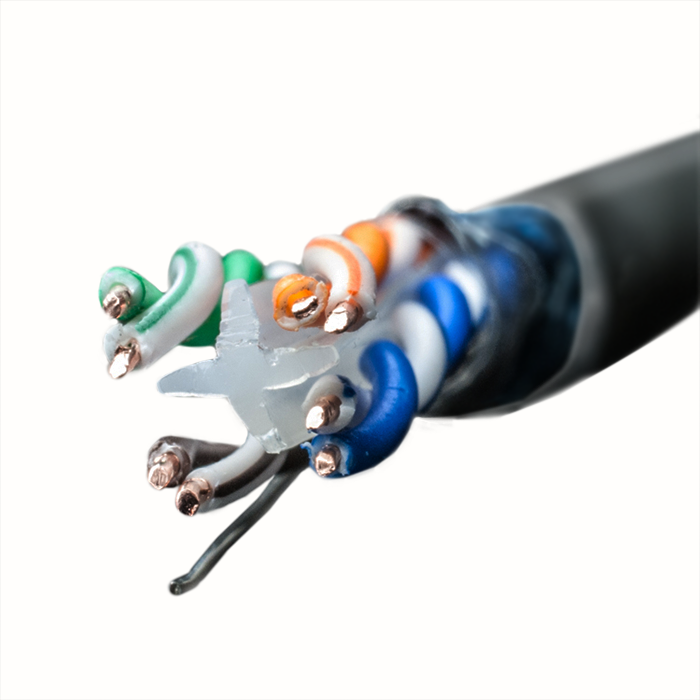

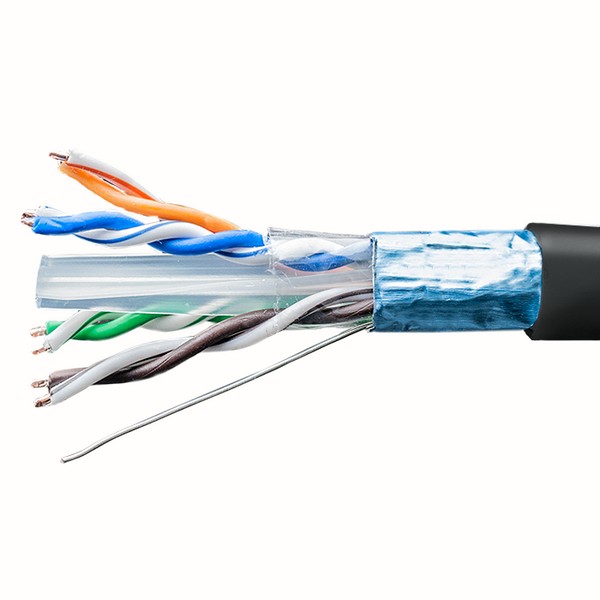

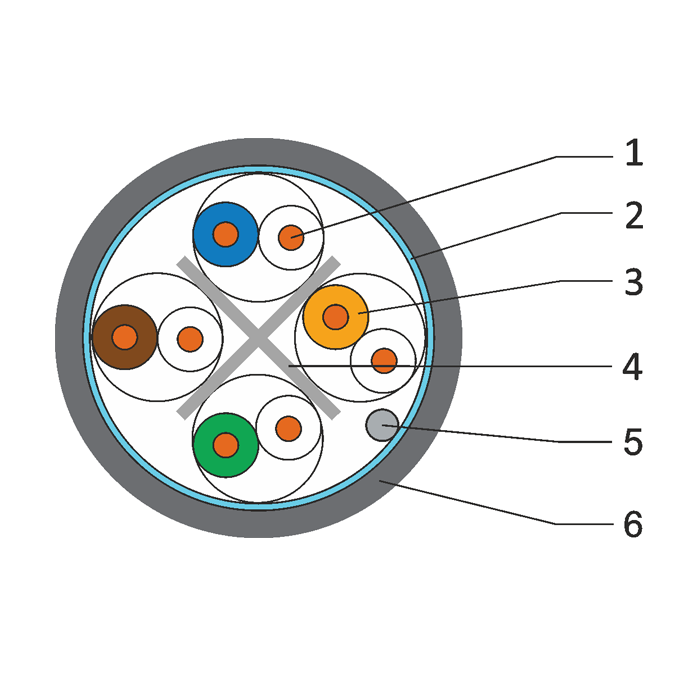

Construction
- Conductive core: soft copper wire
- Insulation: polyethylene
- Core screen: polymer coated aluminium tape (metal inside)
- Binding polymer tape
- Tinned copper contact wire with 0,4 mm diameter
- Cross-shaped plastic pair separator (insulating cord)
- External sheath: light-stabilized polyethylene (PE)
Sheath colour - black
