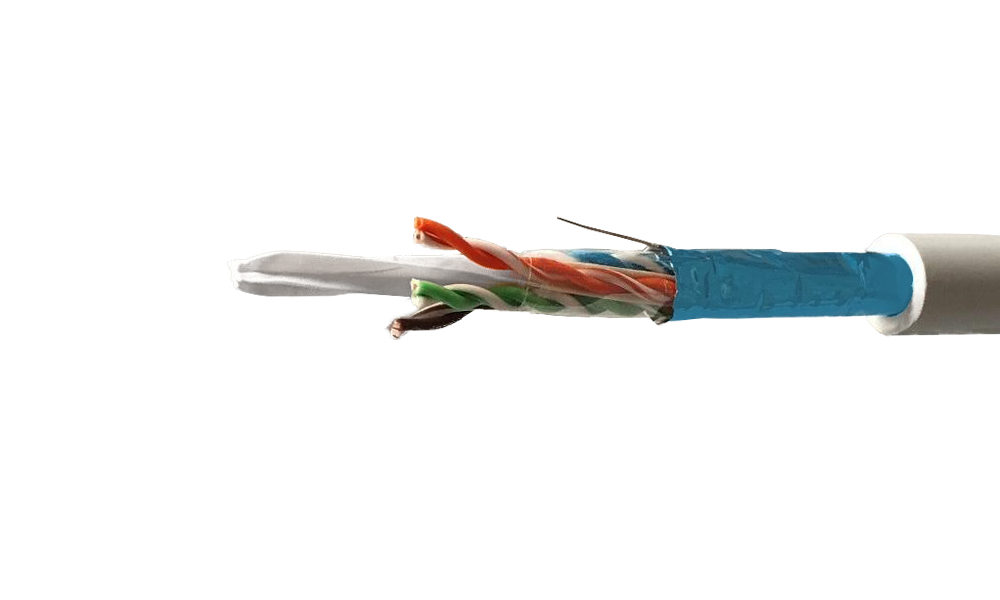

SUPRLAN Six FTP 6 4x2xAWG23 Cu нг(А)-LSLTx In. 305m

Description

Article: 01-1049

Category 6 LAN cable is used in large information system construction projects in case of special requirements for protection against interferences and/or for providing long-distance communication. External laying in cablee ducts, in collectors, shafts, along the external facades of buildings. Operated at frequencies up to 250 MHz.

Category 6 LAN cable is used in large information system construction projects in case of special requirements for speed of data transmission and for protection communication channels against interferences. The main field of application of SUPRLAN Six cables are large-scale data centers, which handle and store large amounts of data. FTP Cat.6 4Pr Indoor allows to transmit a 10 Gbit/s signal to a distance of up to 55 m. Fully compliant with ISO/IEC 11801, EN 50173, TIA/EIA568 and GOST R 54429-2011.

Cables нг(А)-LSLTx are manufactured under «GOST 31565-2012 Fire safety requirements», fully compliant with IEC 60331, IEC 60332, IEC 60754, IEC 61034, which makes it possible to use them in pre-school, health-care institutions, places with large crowds of people (malls, residential complexes and other institutions where people need more time to evacuate due to their age or physical health). With the introduction of this GOST, appeared a norm of toxicity of cables used in social facilities.

Characteristics

ETIM category:
EC000830
ETIM caregory name:
Data cable
Manufacturer:
Odeskabel
Category:
6
SUPRLAN cable class:
Six
Bandwidth, MHz:
250
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,57
Conductive core cross section, mm2:
0,26
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
FTP (F/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coating area
Allowable tensile load, kN:
0,1
External cable diameter, mm:
10,3
Sheath material:
нг(А)-LSLTx
Low smoke emission according to EN 61034-2:
Да
Sheath material:
Gray
Laying method:
Indoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568, GOST 54429-2011, GOST 31565-2012, IEC 60331, IEC 60332, IEC 60754, IEC 61034
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 10GBASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -20 to +60
Package:
Reel 305m

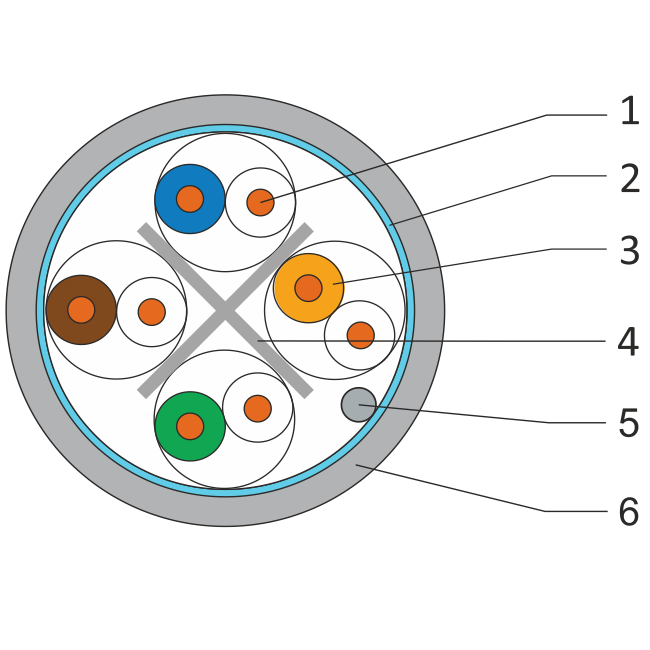

Construction

  1. Conductive core: soft copper (Grade A) wire
  2. Core screen:  polymer coated aluminium tape (metal inside)
  3. Insulation: polyethylene
    Core: pairs, twisted together
  4. Cross-shaped pair separator
  5. Tinned copper contact wire with 0,4 mm diameter
  6. External sheath: low-smoke and low-toxicity PVC нг(А)-LSLTx
