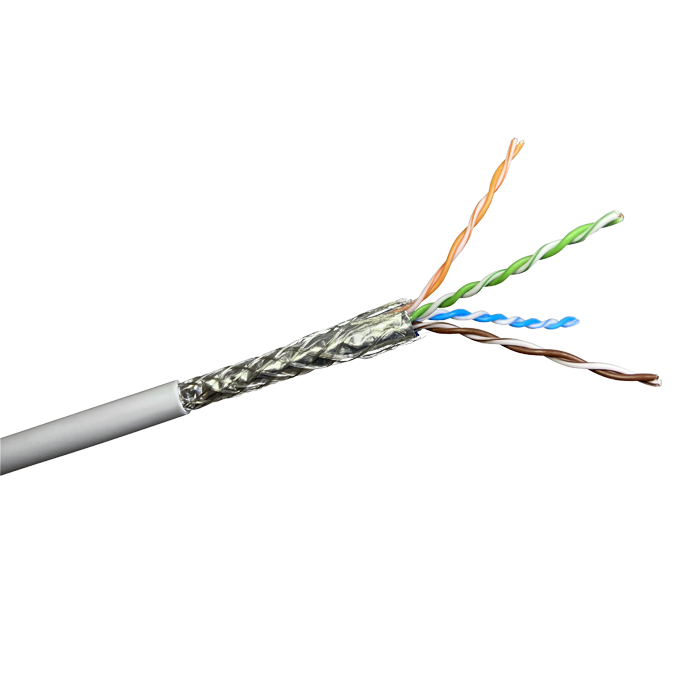

SUPRLAN Premium SFTP 5e 4x2x0,51 Сu LSZH нг(А)-HF In. 305m
Description
Article: 01-1404
SUPRLAN Premium — Top-class Category 5e LAN cable, fully compliant with standards ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011.
This cable is in SF/UTP shielding and intended for laying inside buildings.
Cables нг(А)-HF (halogen free) are manufactured under «GOST 31565-2012 Fire safety requirements», fully compliant with IEC 60331, IEC 60332, IEC 60754, IEC 61034, which makes it possible to use them in buildings and constructions with mass presence of people, including multifunctional high-rise buildings and business centers.
Characteristics
ETIM category:
EC000830
ETIM caregory name:
Data cable
Manufacturer:
Odeskabel
Category:
5е
SUPRLAN cable class:
Premium
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,51
Conductive core cross section, mm2:
0,2
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Number of conductive cores:
8
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:

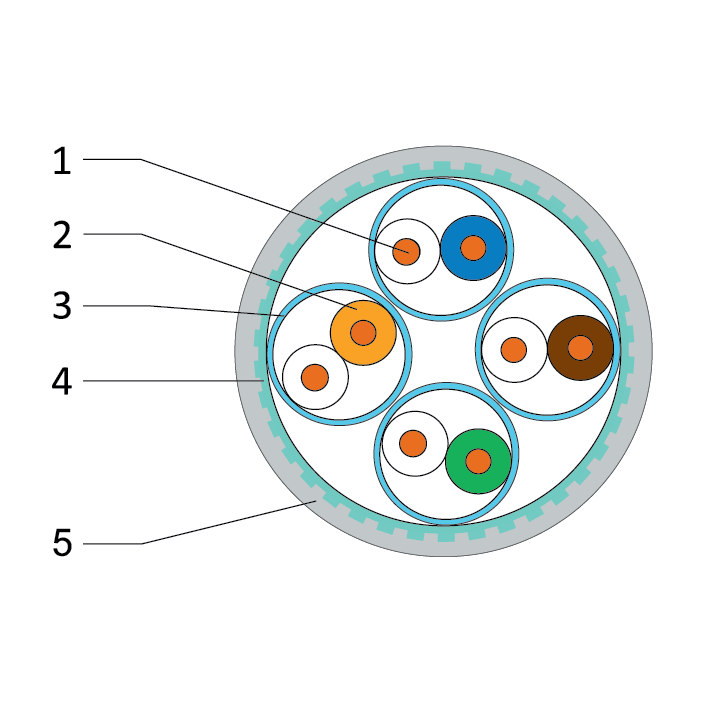

SFTP (SF/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coating area + wire braid
Allowable tensile load, kN:
0,1
External cable diameter, mm:
6,9
Sheath material:
нг(А)-HF (halogen free)
Sheath material:
Gray
Laying method:
Indoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568, GOST 54429-2011, GOST 31565-2012, IEC 60331, IEC 60332, IEC 60754, IEC 61034
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -20 to +60
Package:
Box 305m
