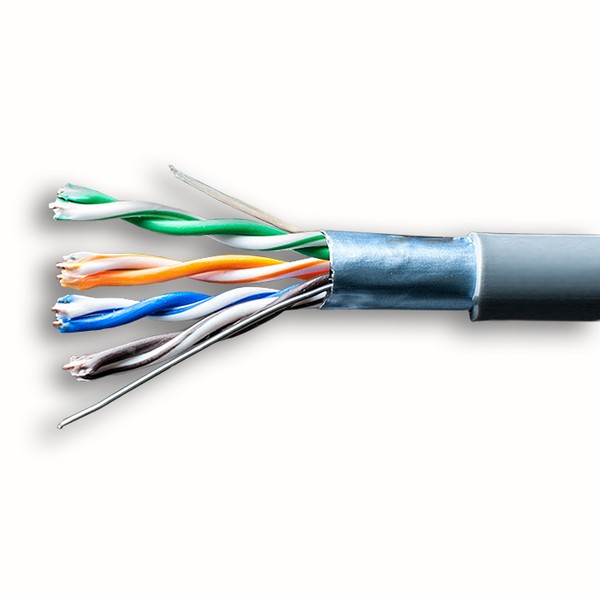

SUPRLAN Premium FTP 5e 4x2x0,51 Cu PVC In. 305m
Description
Article: 01-1012
SUPRLAN Premium — Top-class Category 5e LAN cable, fully compliant with standards ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011.
This cable is indended for laying inside buildings. Designed for the following tasks: construction of various computer information networks, VoIP and IPTV, video surveillance systems (including PoE+).
Characteristics
ETIM category:
EC000830
ETIM caregory name:
Data cable
Category:
5е
SUPRLAN cable class:
Premium
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,51
Conductive core cross section, mm2:
0,2
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
FTP (F/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coating area
Allowable tensile load, kN:
0,1
External cable diameter, mm:
5,8
Sheath material:
PVC
Sheath material:
Gray
Laying method:
Indoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -20 to +60
Package:

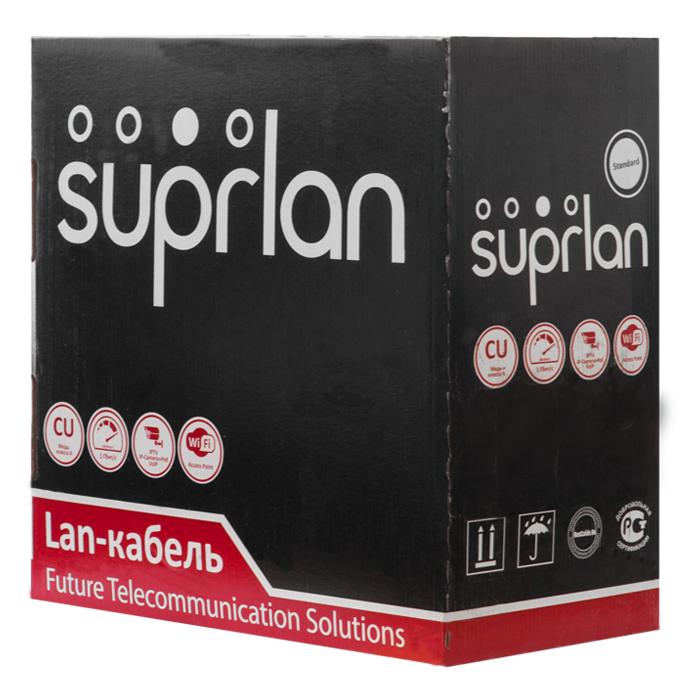

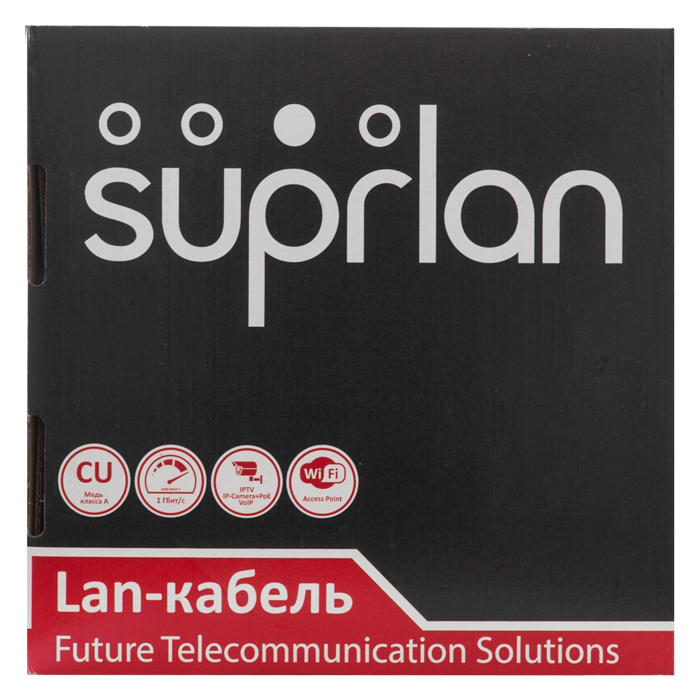

Box 305m
