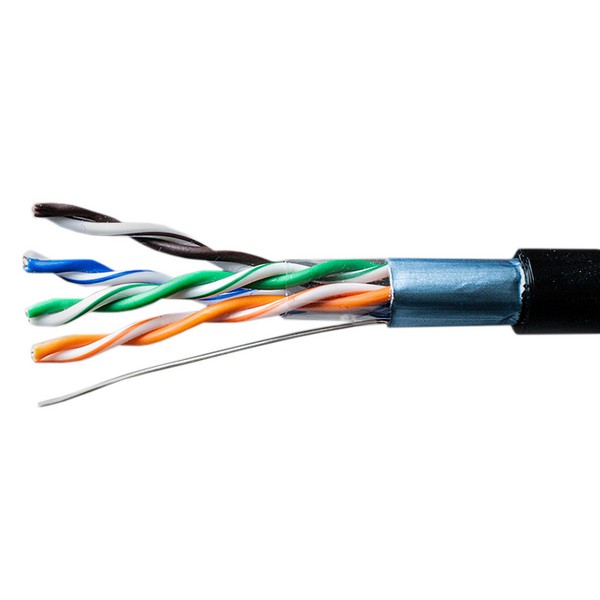

SUPRLAN Premium FTP 5e 4x2x0,51 Cu PE Out. 305m
Description
Article: 01-1010
SUPRLAN Premium — Top-class Category 5e LAN cable, fully compliant with standards ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011.
This cable is intended for external laying in cablee ducts, in collectors, shafts, along the external facades of buildings.
Characteristics
ETIM category:
EC000830
ETIM caregory name:
Data cable
Category:
5е
SUPRLAN cable class:
Premium
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,51
Conductive core cross section, mm2:
0,2
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
FTP (F/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coating area
Allowable tensile load, kN:
0,1
External cable diameter, mm:
6
Sheath material:
Polyethylene (PE)
Sheath material:
Black
Laying method:
Outdoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -50 to +60
Package:
Box 305m
Operating conditions
| Области и условия применения (Applications) | Premium | Standard | Median | Light |
|---|---|---|---|---|
| Центры обработки данных (ЦОД) | ||||
| Структурированные кабельные системы (СКС) | ||||
| Высокоскоростной Интернет (Hi-Speed Internet) 100 Мбит/с | ||||
| Фиксированный широкополосный доступ в Интернет (xDSL) | ||||
| Цифровая телефония (Digital Phone) | ||||
| IP-телевидение (IPTV); IP-телефония (VoIP) | ||||
| Управляемая IP-камера (IP-Camera + PoE) | ||||
| Точка беспроводного доступа (WiFi Access Point) | ||||
| Системы видеонаблюдения (CCTV with baluns) |

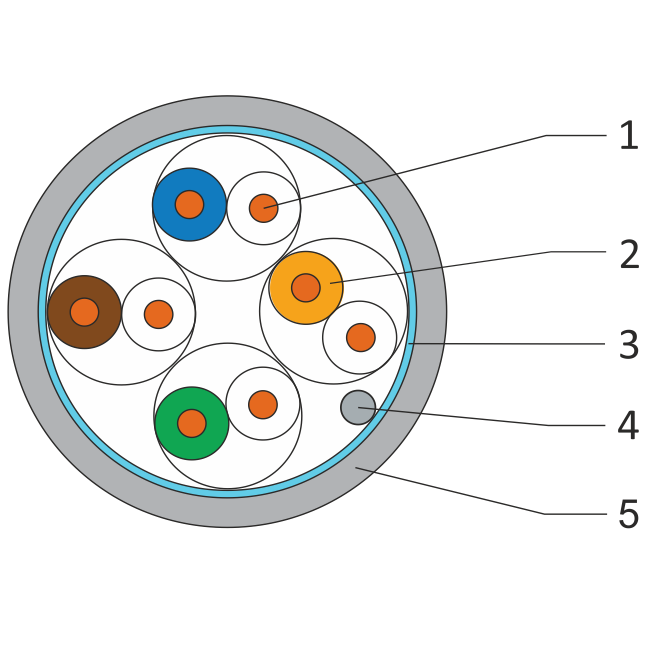

Construction
- Conductive core: copper (Grade A) soft wire
- Insulation: polyethylene
Core: pairs, twisted together - Core screen: polymer coated aluminium tape (metal inside)
- Tinned copper contact wire with 0,4 mm diameter
- External sheath: PVC,
Sheath colour — gray or white (another is available upon request)
