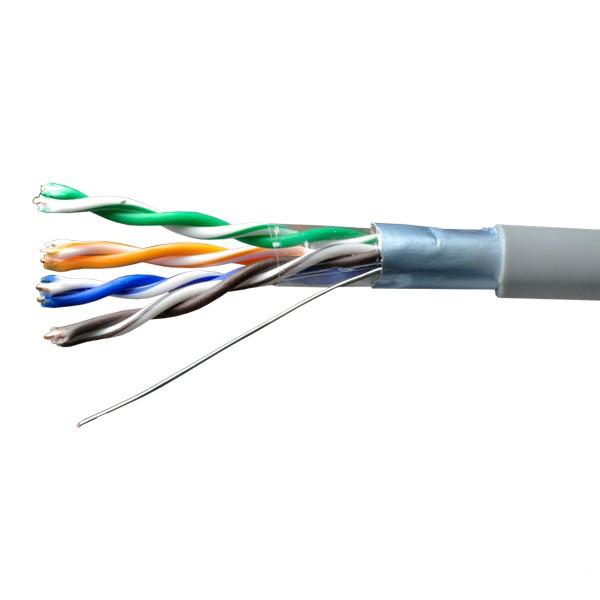

SUPRLAN Premium FTP 5e 4x2x0,51 Cu нг(А)-LSLTx In. 305m

Description

Article: 01-1048

SUPRLAN Premium — Top-class Category 5e LAN cable, fully compliant with standards ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011.

This cable is indended for laying inside buildings. Designed for the following tasks: construction of various computer information networks, VoIP and IPTV, security and video surveillance systems. Cables нг(А)-LSLTx are manufactured under «GOST 31565-2012 Fire safety requirements», fully compliant with IEC 60331, IEC 60332, IEC 60754, IEC 61034, which makes it possible to use them in pre-school, health-care institutions, places with large crowds of people (malls, residential complexes and other institutions where people need more time to evacuate due to their age or physical health). With the introduction of this GOST, appeared a norm of toxicity of cables used in social facilities.

Characteristics

ETIM category:

EC000830

ETIM caregory name:

Data cable

Manufacturer:

Odeskabel

Category:

5е

SUPRLAN cable class:

Premium

Bandwidth, MHz:

100

Conductive core material:

Cupper Solid

Conductive core diameter, mm:

0,51

Conductive core cross section, mm2:

0,2

Conductive core insulation material:

High density polyethylene (HDPE)

Number of pairs:

4

Elements' stranding:

Twisted pair

Conductive core class:

1 (solid)

Conductive core marking:

Colour

Conductor type:

Solid

Screening:

FTP (F/UTP)

Pair screen material:

None

Collective screen material:

Polyester aluminium foil with 100% coating area

Allowable tensile load, kN:

0,1

External cable diameter, mm:

9,3

Sheath material:

нг(А)-LSLTx

Low smoke emission according to EN 61034-2:

Да

Sheath material:

Gray

Laying method:

Indoor

Compliance with standards:

ISO/IEC11801, EN 50173, TIA/EIA568, GOST 54429-2011, GOST 31565-2012, IEC 60331, IEC 60332, IEC 60754, IEC 61034

Supported applications:

10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155

Working voltage:

up to 72W

Allowable installation temperature, °С:

from -10 to +60

Allowable operating temperature, °С:

from -20 to +60

Package:

Reel 305m

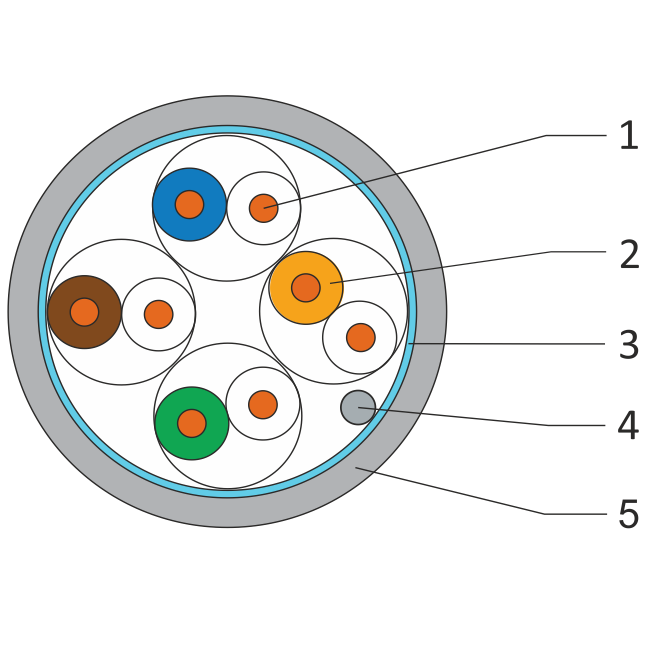

Construction

Conductive core: soft copper (Grade A) wire
Insulation: polyethylene
Core: pairs, twisted together
Core screen: polymer coated aluminium tape (metal inside)
Tinned copper contact wire with 0,4 mm diameter
External sheath: нг(А)-LSLTx
Sheath colour - gray or white

Certificates

Гигиеническое заключение на кабель SUPRLAN Декларации соответствия Министерства Связи (F/UTP Cat.6 Indoor) Отказное письмо ТРТС Одесса Пожарный сертификат на симметричные кабели SUPRLAN Сертификат соответствия ГОСТ Р 54429-2011 Одескабель
