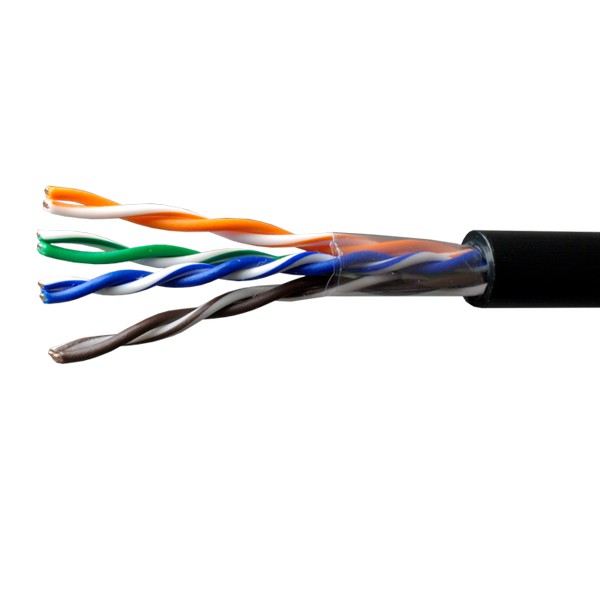

SUPRLAN Long Ethernet UTP 5e 4x2x0,64 Cu PE Out. 500m
Description
Article: 01-0345
SUPRLAN LongEthernet - LAN cable of special purpose, fully compliant with the requirements of category 5e according to ISO/IEC 11801, EN 50173, TIA/EIA568 and GOST R 54429-2011 standards.
This type of cable can be used for construction of structured cable systems, as well as for organization of broadband access networks or video surveillance systems at large distances (up to 250 meters!).
Characteristics
ETIM category:
EC000830
ETIM caregory name:
Data cable
Manufacturer:
Odeskabel
Category:
5е
SUPRLAN cable class:
Long Ethernet
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,64
Conductive core cross section, mm2:
0,32
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
UTP (U/UTP)
Pair screen material:
None
Collective screen material:
None
Allowable tensile load, kN:
0,1
External cable diameter, mm:
6,78
Sheath material:
Polyethylene (PE)
Sheath material:
Black
Laying method:
Outdoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -50 to +60
Package:
Reel 500m
Operating conditions
Рабочее напряжение: до 72 В
Эксплуатируется на частотах: до 100 МГц
Температурный диапазон.
Во время монтажа: от -10 °С до +60 °С
В процессе эксплуатации: от -50 °С до +60 °С
Радиус изгиба:
Во время монтажа: не менее 10 внешних диаметров.
В процессе эксплуатации: не менее 4 внешних диаметров.
Растягивающее усилие: до 100 Н
