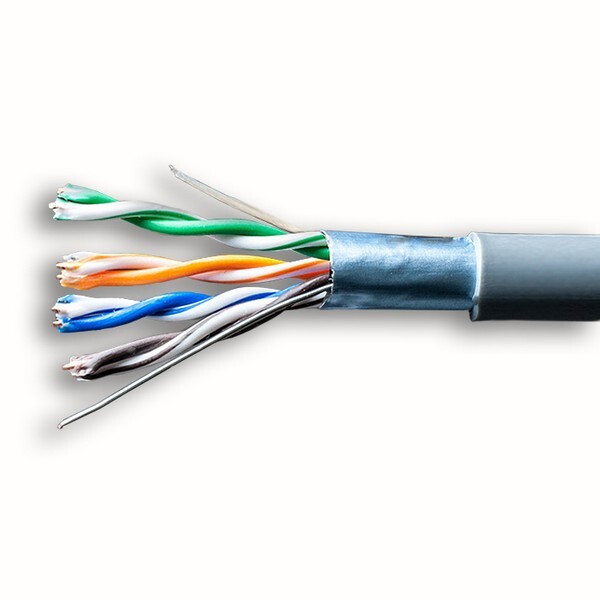

SUPRLAN Long Ethernet FTP 5e 4x2x0,64 Cu PVC In. 500m
Characteristics
Manufacturer:
Odeskabel
Category:
5е
SUPRLAN cable class:
Long Ethernet
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,64
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Number of conductive cores:
8
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
FTP (F/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coverage area
Sheath material:
PVC
Sheath material:
Gray
Laying method:
Indoor
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
uo to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -20 to +60
Package:
Reel 500m
