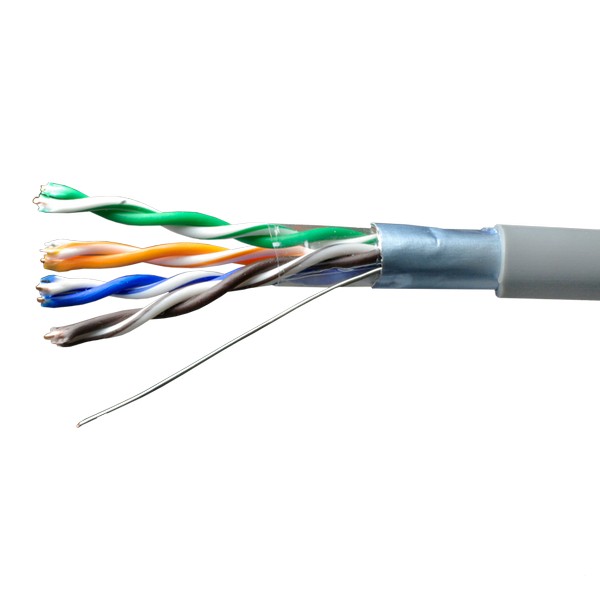

SUPRLAN Light FTP 5e 4x2xAWG25 Cu PVC In. 305m

Description

Article: 01-1004

SUPRLAN Light is a low-cost LAN cable designed primarily for domestic applications. It allows to build a medium-speed computer network with limited line lengths, suitable for solving many other problems. Meets the requirements of GOST R 54429-2011.

This cable is intended for laying inside buildings

Characteristics

ETIM category:
EC000830
ETIM caregory name:
Data cable
Category:
SUPRLAN cable class:
Light
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,44
Conductive core cross section, mm2:
0,15
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
4
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
FTP (F/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coating area
Allowable tensile load, kN:
0,1
External cable diameter, mm:
5,2
Sheath material:
PVC
Sheath material:
Gray
Laying method:
Indoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -20 to +60

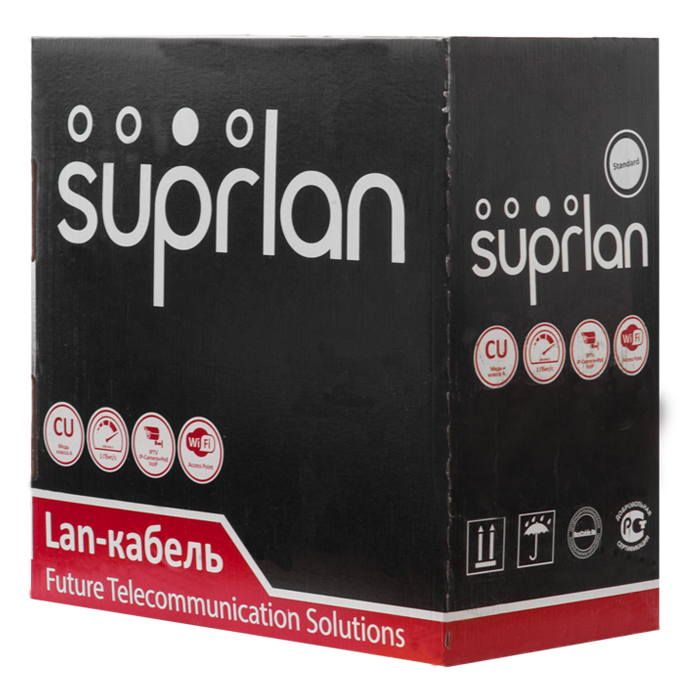

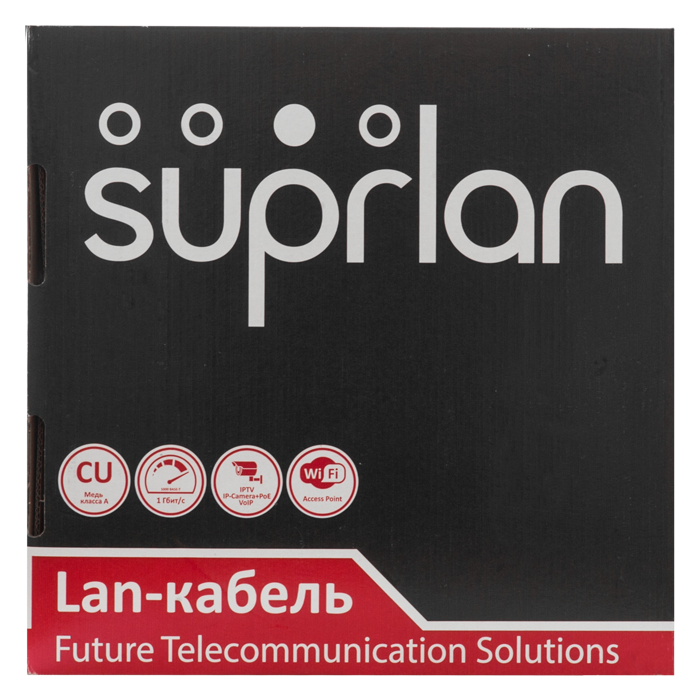

Package:
Box 305m

Operating conditions

Области и условия применения (Applications) Premium Standard Median Light
Центры обработки данных (ЦОД)
Структурированные кабельные системы (СКС)
Высокоскоростной Интернет (Hi-Speed Internet) 100 Мбит/с
Фиксированный широкополосный доступ в Интернет (xDSL)
Цифровая телефония (Digital Phone)
IP-телевидение (IPTV); IP-телефония (VoIP)
Управляемая IP-камера (IP-Camera + PoE)
Точка беспроводного доступа (WiFi Access Point)
Системы видеонаблюдения (CCTV with baluns)

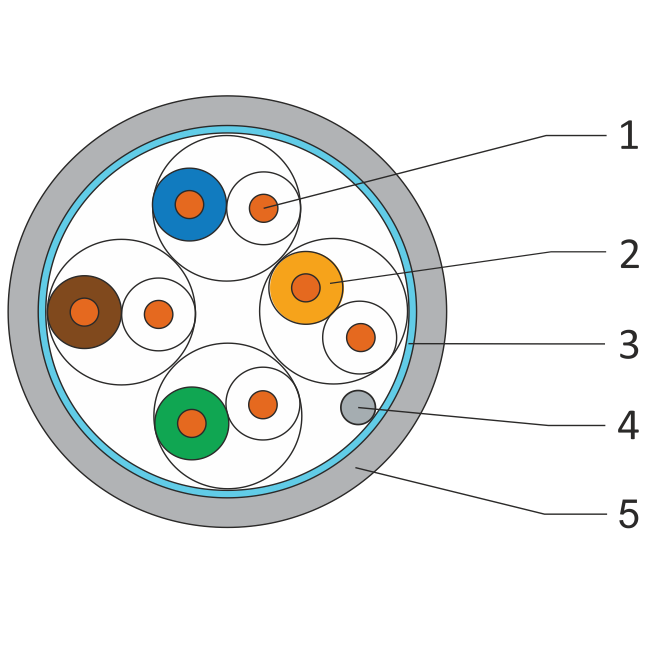

Construction

  1. Conductive core: copper (Grade A) soft wire
  2. Insulation: polyethylene
  3. Core screen: polymer coated aluminium tape (metal inside)
  4. Tinned copper contact wire with 0,4 mm diameter
  5. External sheath: PVC
    Sheath colour - gray or white (PVC)
