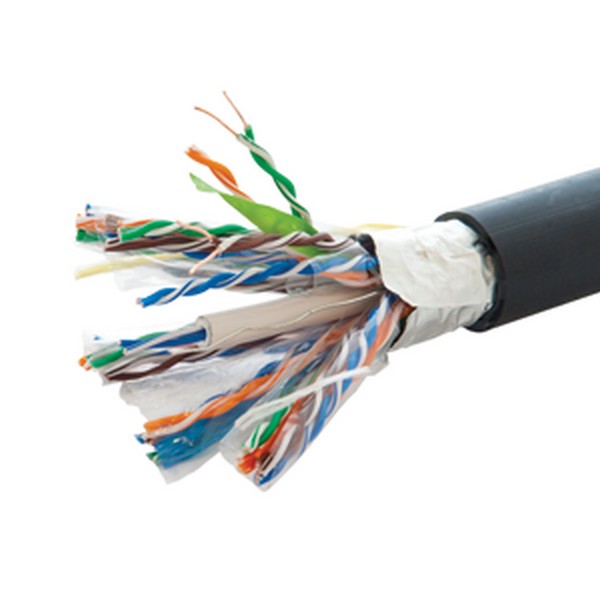

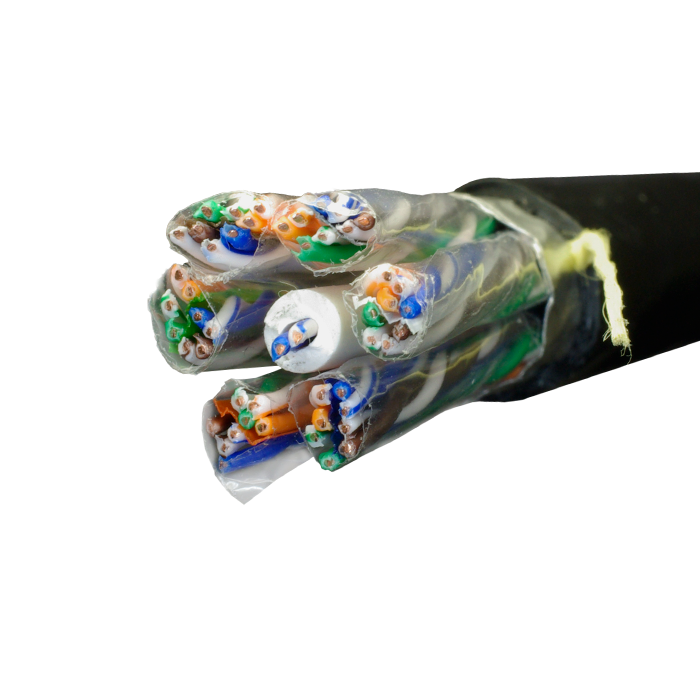

SUPRLAN FTP 5e 25x2x0,51 Cu PE Out. 305m

Description

Article: 01-1308

Multipair cables are used in broadband access networks for sending a signal to the floor and then prividing it to subscribers with a traditional 4-pair horizontal cable. In the construction of office information systems, multipair constructions can be used in open offices for connecting the patch panel of a technical room with a consolidation point or a multi-user information socket.

It allows to solve the spectrum of tasks from construction of various high- and medium-speed computer networks, it is applied in IP telephony and IPTV projects, broadband access lines in InternetxDSL, video surveillance systems (including PoE+).

This cable is intended for external laying in cablee ducts, in collectors, shafts, along the external facades of buildings.

Shielded for using under increased electromagnetic influences.

Characteristics

ETIM category:
EC000830
ETIM caregory name:
Data cable
Category:
SUPRLAN cable class:
Premium
Bandwidth, MHz:
100
Conductive core material:
Cupper Solid
Conductive core diameter, mm:
0,51
Conductive core cross section, mm2:
0,2
Conductive core insulation material:
High density polyethylene (HDPE)
Number of pairs:
25
Elements' stranding:
Twisted pair
Conductive core class:
1 (solid)
Conductive core marking:
Colour
Conductor type:
Solid
Screening:
FTP (F/UTP)
Pair screen material:
None
Collective screen material:
Polyester aluminium foil with 100% coating area
Allowable tensile load, kN:
0,1
External cable diameter, mm:
15,1
Sheath material:
Polyethylene (PE)
Sheath material:
Black
Laying method:
Outdoor
Compliance with standards:
ISO/IEC11801, EN 50173, TIA/EIA568 and GOST 54429-2011
Supported applications:
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155
Working voltage:
up to 72W
Allowable installation temperature, °С:
from -10 to +60
Allowable operating temperature, °С:
from -50 to +60
Package:
Reel 305m
