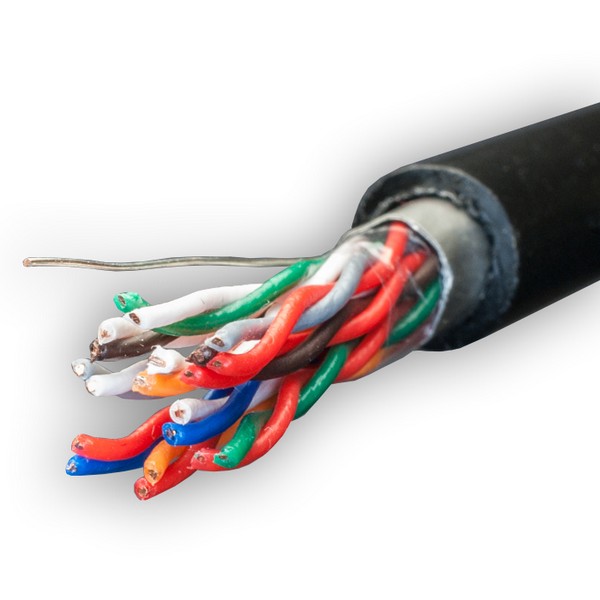

SUPRLAN FTP 5e 10x2xAWG24 Cu PE Out. 305m
Description
Multipair cables are used in broadband access networks for sending a signal to the floor and then prividing it to subscribers with a traditional 4-pair horizontal cable. In the construction of office information systems, multipair constructions can be used in open offices for connecting the patch panel of a technical room with a consolidation point or a multi-user information socket.
It allows to solve the spectrum of tasks from construction of various high- and medium-speed computer networks, it is applied in IP telephony and IPTV projects, broadband access lines in InternetxDSL, video surveillance systems (including PoE+).
This cable is intended for external laying in cablee ducts, in collectors, shafts, along the external facades of buildings.
Shielded for using under increased electromagnetic influences.
Characteristics

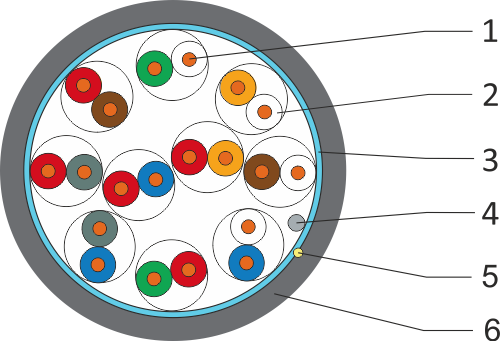

Construction
- Conductive core: soft copper (Grade A) wire
- Insulation: polyethylene
Core: pairs, twisted together
Bunch: 4 pairs, twisted together - Core screen: polymer coated aluminium tape (metal inside)
- Tinned copper contact wire with 0,4 mm diameter
- Ripcord: aramid yarn
- External sheath: light-stabilized polyethylene
Sheath colour - black
